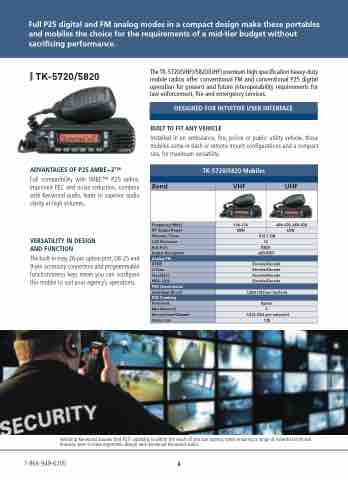

Page 9 - Kenwood P25 Catalog

Full P25 digital and FM analog modes in a compact design make these portables and mobiles the choice for the requirements of a mid-tier budget without sacrificing performance.
TK-5720/5820
The TK-5720(VHF)/5820(UHF) premium high specification heavy-duty mobile radios offer conventional FM and conventional P25 digital operation for present and future interoperability requirements for law enforcement, fire and emergency services.
BUILT TO FIT ANY VEHICLE
Installed in an ambulance, fire, police or public utility vehicle, these mobiles come in dash or remote mount configurations and a compact size, for maximum versatility.
DESIGNED FOR INTUITIVE USER INTERFACE
TK-5720/5820 Mobiles
Band
VHF
UHF
Frequency (MHz)
136-174
400-470, 450-520
RF Output Power
50W
45W
Channel / Zone
512 / 128
LCD Character
14
Aux Port
DB25
Digital Encryption
AES/DES
Analog FM
DTMF
Encode/Decode
2-Tone
Encode/Decode
FleetSync
Encode/Decode
MDC-1200
Encode/Decode
P25 Conventional
Individual ID List
1,000 (100 per System)
P25 Trunking
Firmware
Option
Max Network
4
Normal Hunt Channel
1,024 (256 per network)
Status List
128
ADVANTAGES OF P25 AMBE+2TM
Full compatibility with IMBETM P25 radios, improved FEC and noise reduction, combine with Kenwood audio, leads to superior audio clarity at high volumes.
VERSATILITY IN DESIGN AND FUNCTION
The built-in easy 26-pin option port, DB-25 and 9-pin accessory connectors and programmable function/menu keys mean you can configure this mobile to suit your agency’s operations.
Selecting Kenwood assures that P25 capability is within the reach of any size agency, while ensuring a range of essential technical features, best-in-class ergonomic design and renowned Kenwood audio.
